Drag Models¶

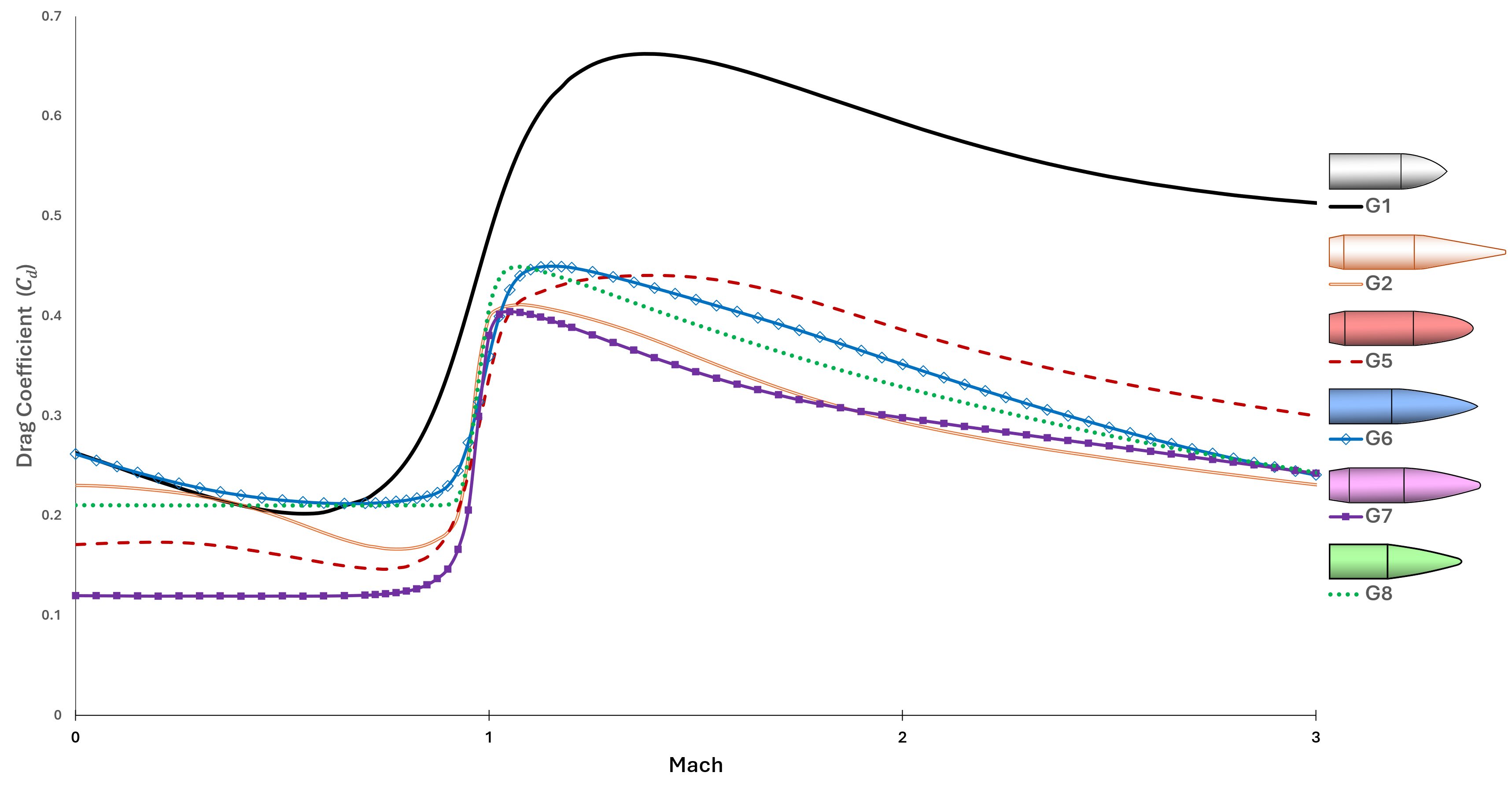

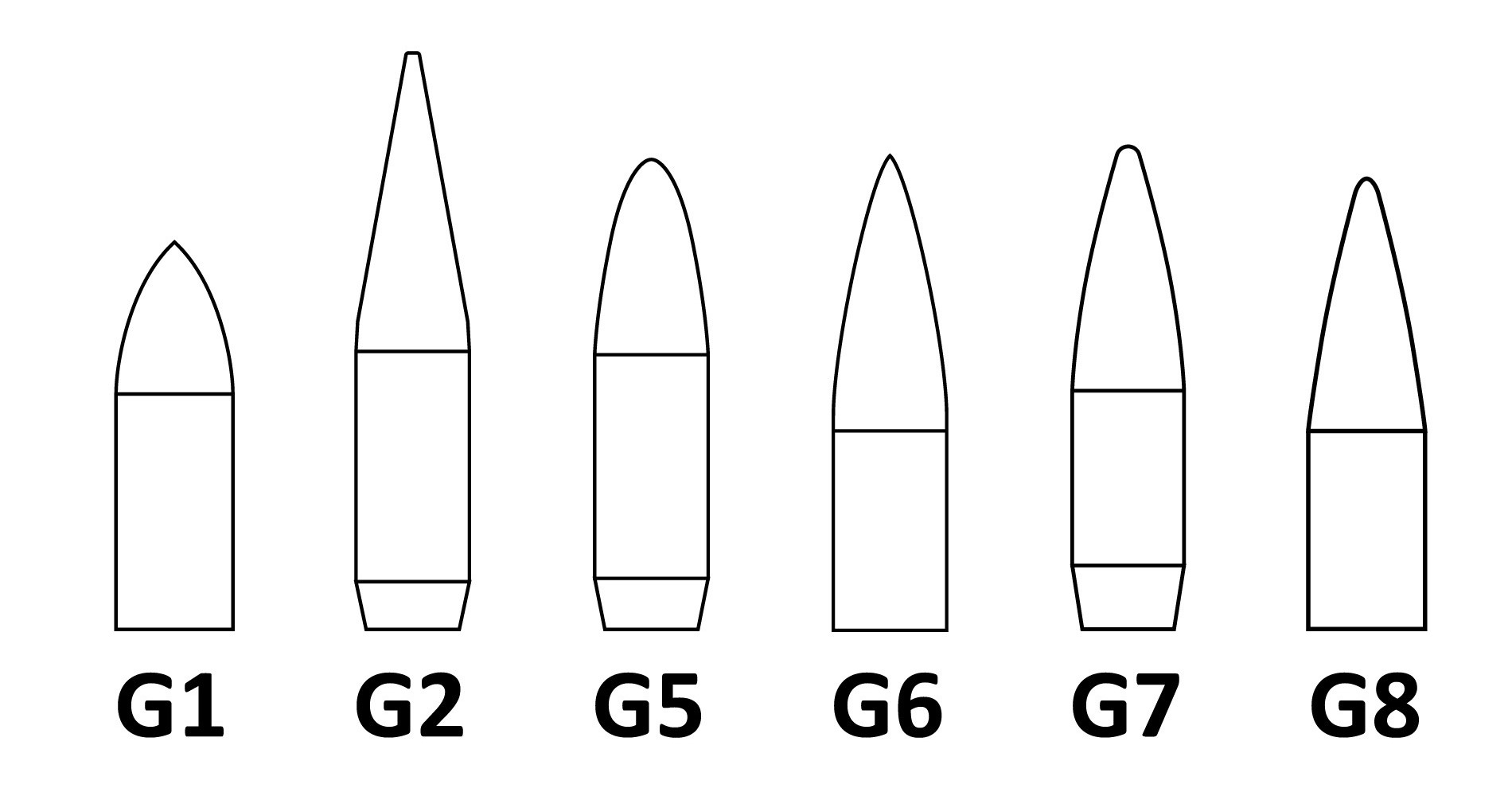

The drag subsystem models aerodynamic resistance via Ballistic Coefficients referencing standard drag model tables (G1, G7, etc.), or custom Mach–\(C_d\) pairs.

• DragModel: Single-BC scaling of a reference drag table; optional weight/diameter/length for spin-drift calculations.
• BCPoint + DragModelMultiBC(...): Interpolate BC across velocity/Mach to better match measured data.
• Helpers: make_data_points, sectional_density, linear_interpolation.

Use with Ammo(dm=DragModel(...)) to parameterize the projectile.
